59020

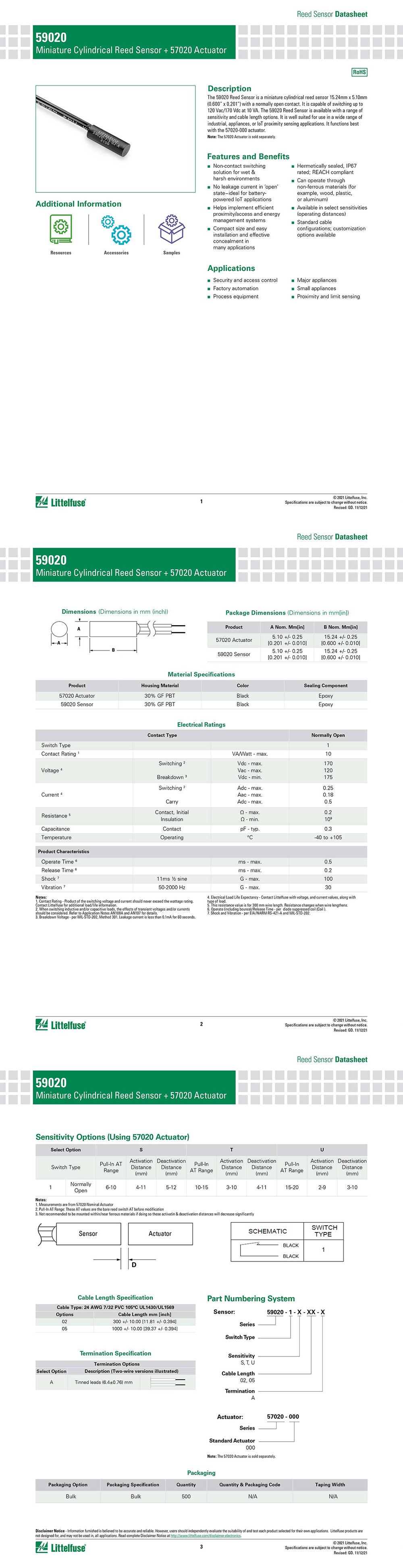

Model: 59020 Cylindrical Sensor

Features: The contacts are normally open and can switch up to 170Vdc when the power is 10W

Switching voltage: 170Vdc

Note: The best performance is achieved when used in conjunction with the 57020 drive.

Function and Features: Magnetic Drive Distance Sensor; Working with non-ferrous materials such as wood, plastic, or aluminum; Sealed contact points; There are normally open, normally closed, and single pole double throw contacts to choose from; Customers can customize sensitivity; Customers can customize cable lengths and connectors.

Advantages: Can be installed in small spaces; Quick installation; Suitable for use in polluted environments with high humidity; Non contact solution, more aesthetically pleasing than button or lever mechanical switches; It does not consume power when inactive, making it an ideal choice for battery powered applications; Under the voltage and current logic level load of the microcontroller, the working cycle of the spring contacts can reach millions of times.

Application scope: position and limit switching, security, liquid level sensing, linear actuators.
