59025

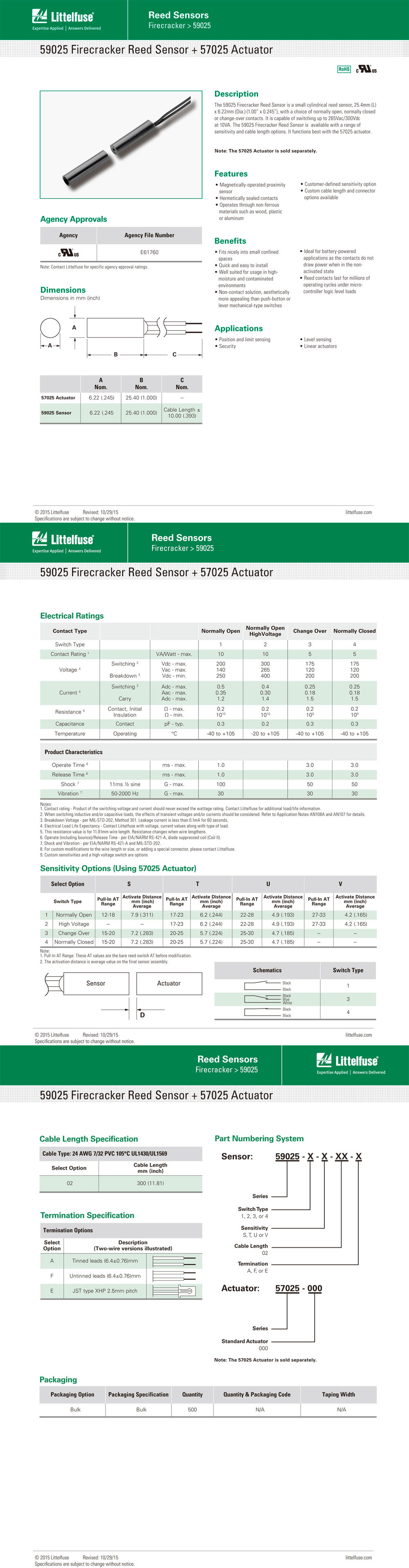

Model: 59025 Cylindrical Sensor

Features: Normally open contacts, best performance when used in conjunction with 57025 driver

Size: (max) 25.4mmx 6.22mm (1.00 "x 0.245")

Switching voltage: Up to 265Vac/300Vdc can be switched at 10VA

Note: The best performance is achieved when used in conjunction with the 57025 drive.

Features and advantages: A non-contact switch solution suitable for humid and harsh environments; There is no leakage current in the "open circuit" state, which is very suitable for battery powered IoT applications; Assist in implementing efficient proximity/access and energy management systems; Compact size, easy to install, can effectively conceal sealing in many applications, IP67 rating; Compliant with UL and REACH; Can work with non-ferrous materials such as wood, plastic, or aluminum; Provide specified sensitivity (working distance); Standard cable configuration; Provide customization options; Compliant with UL 508 and CSA C22.2 No. 14 UL accreditation.

Application scope: security and access control, factory automation, processing equipment, large appliances, small appliances, proximity and limit sensors.
