59085

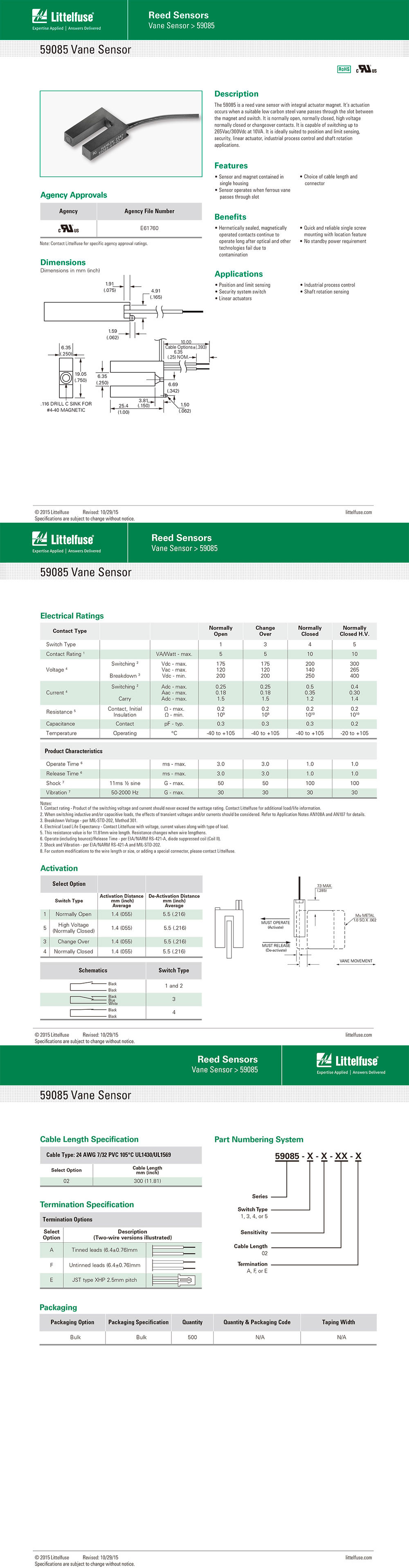

Model: 59085 Tongue spring proximity switch blade sensor

Characteristics: normally open, normally closed, high voltage normally closed or switching contacts

Switching voltage: Up to 265Vac/300Vdc can be switched at 10VA

Acceptable model: 59085-010 59085-1-T-02-A 59085-030 59085-3-T-02-A 59085-040 59085-4-T-02-A

Function and Features: Sensors and magnets are contained in a single housing; When the iron plate passes through the slot, it runs; Fast and reliable single screw installation with positioning function; There are options for normally open, normally closed, high voltage normally closed, or switching contacts; Customers can customize cable lengths and connectors.

Advantages: Suitable for use in polluted environments with high humidity; Under the voltage and current logic level load of the microcontroller, the working cycle of the spring contacts can reach millions of times.

Application scope: Position and restriction switching, security, axis rotation sensing, industrial process control, linear drives.
