59150

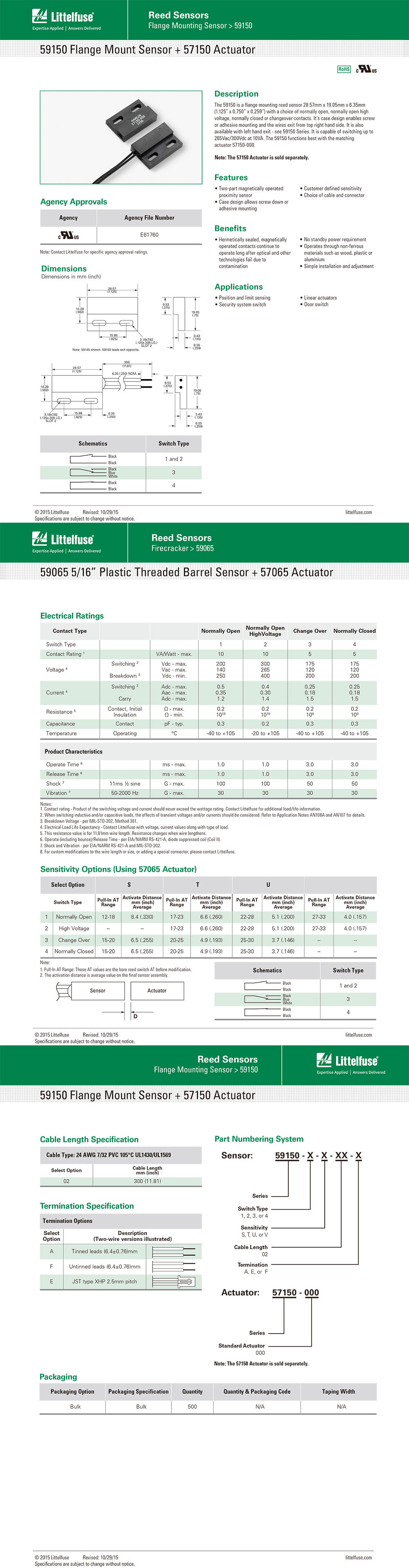

Model: 59150 flange mounted magnetic spring sensor

Size: 28.57mm x 19.05mm x 6.35mm (1.125 "x 0.750" x 0.259 ")

Features: Available with normally open, normally open high voltage, normally closed, and switching contacts for selection

Switching voltage: Up to 265Vac/300Vdc can be switched at 10VA

Note: The best performance is achieved when used in conjunction with 57145 or 57150 drivers.

Function and Features: Magnetic Drive Distance Sensor; Working with non-ferrous materials such as wood, plastic, or aluminum; Can be used for high temperature applications up to 105 ° C; Cross slotted installation holes can achieve optimal adjustability; Customers can customize sensitivity; Different cable lengths and connectors are available for selection.

Advantages: Suitable for use in polluted environments with high humidity; Under the voltage and current logic level load of the microcontroller, the working cycle of the spring contacts can reach millions of times; Easy installation and adjustment.

Application scope: Position and restriction switching, security, door control switches, linear actuators.
