59140

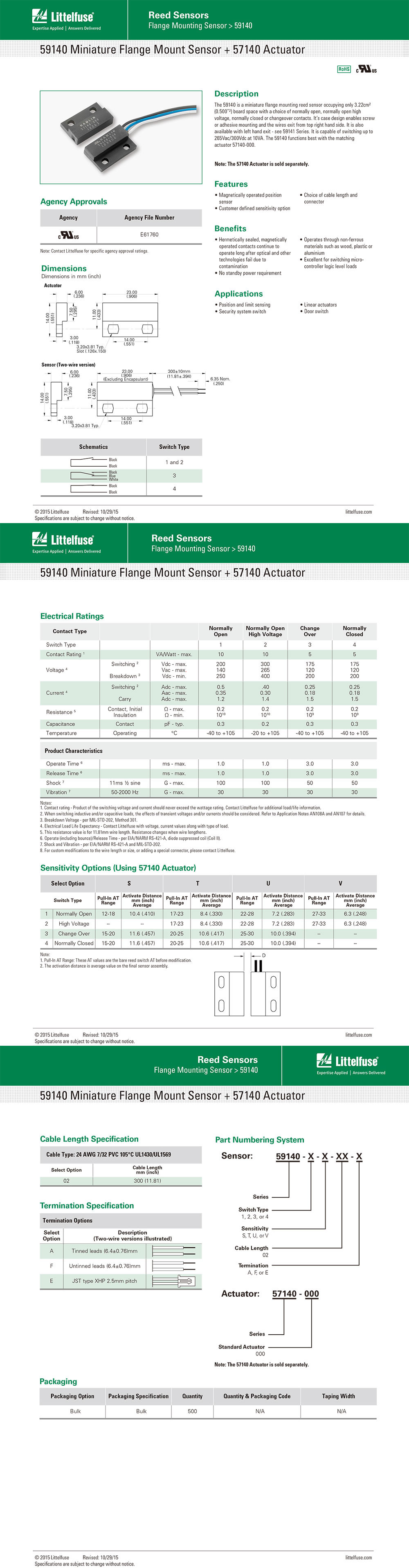

Model: 59140 Miniature Flange Mounted Magnetic Spring Sensor

Size: Only occupies 3.22cm ² (0.500in ²) of circuit board space

Features: normally open, normally open high voltage, normally closed, and switching contacts

Switching voltage: Up to 265Vac/300Vdc can be switched at 10VA

Note: The best performance is achieved when used in conjunction with 57140 or 57141 drivers.

Function and Features: Magnetic Drive Distance Sensor; Working with non-ferrous materials such as wood, plastic, or aluminum; Compact in size, occupying only 3.22cm ² (0.500in ²) of circuit board space; Screw in or adhesive installation; Customers can customize sensitivity; Different cable lengths and connectors are available for selection.

Advantages: Suitable for use in polluted environments with high humidity; Under the voltage and current logic level load of the microcontroller, the working cycle of the spring contacts can reach millions of times; Easy installation and adjustment.

Application scope: Position and restriction switching, security, door control switches, linear actuators.
