59165

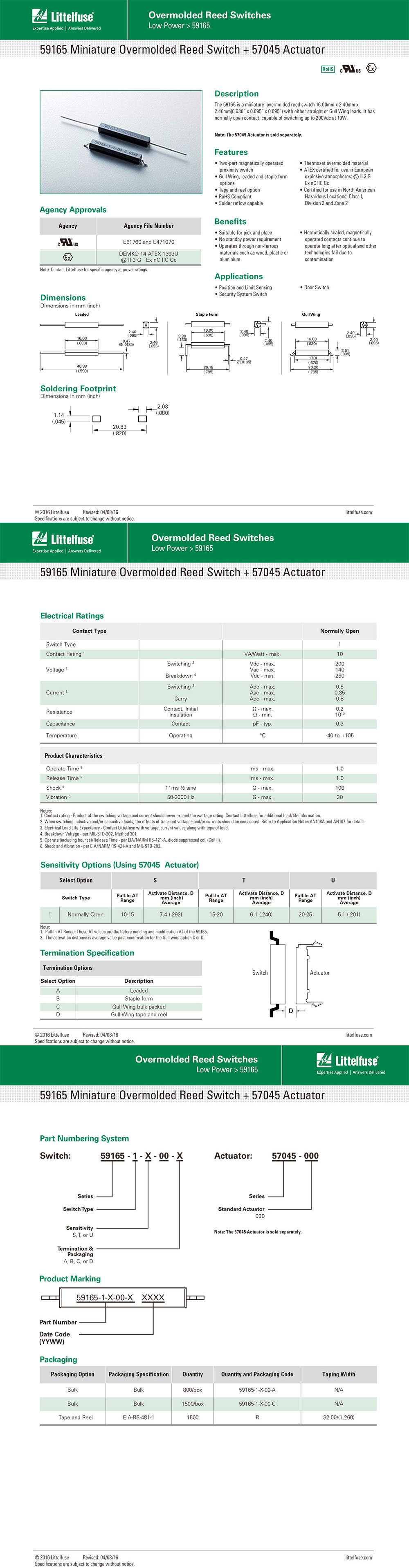

Model: 59165 Miniature encapsulated magnetic spring sensor with straight, staple shaped, or gull wing shaped leads

Size: 16.00mm x 2.41mm x 2.41mm (0.630 "x 0.095" x 0.095 ")

Features: Normally open contact, can switch up to 200Vdc when the power is 10W

Switching voltage: 200Vdc

Note: The best performance is achieved when used in conjunction with the 57045 drive.

Function and Features: A magnetic distance sensor composed of two components; There are gull wing shaped, straight line shaped, and staple shaped lead wires to choose from; Provide molded supports for easy cleaning of circuit boards; Customers can customize sensitivity; Suitable for reflow soldering.

Advantages: Suitable for use in polluted environments with high humidity; Under the voltage and current logic level load of the microcontroller, the working cycle of the spring contacts can reach millions of times; Suitable for pick and place assembly.

Application scope: Position and restriction switching, security, door control switch.
