FLEX-14

Brand: Littelfuse (HAMLIN) from the United States

Model: FLEX-14

Features: Normally open contact, contact power can reach 10W

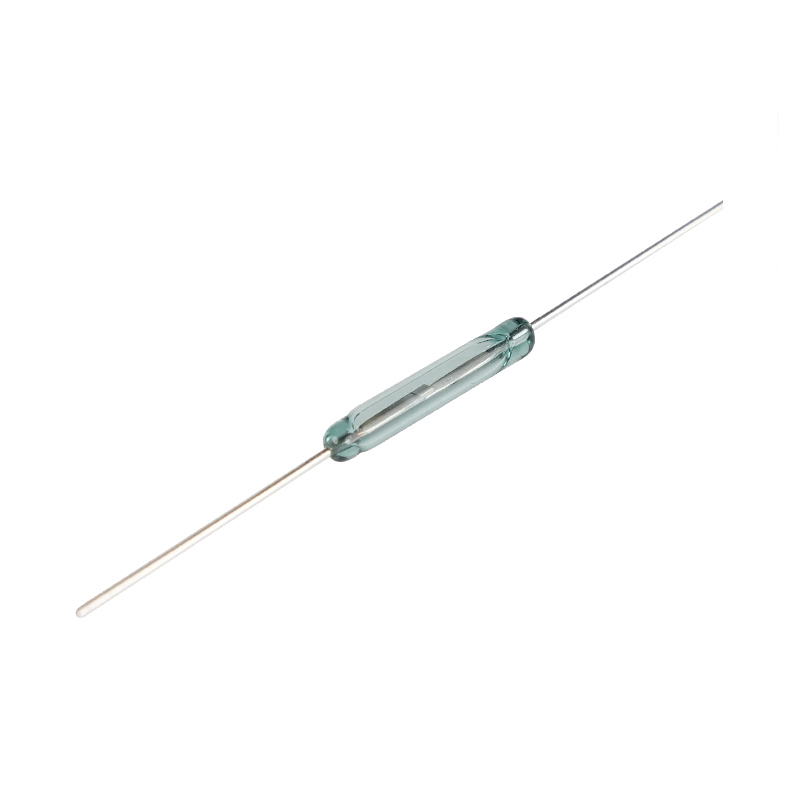

Size: Glass tube size (max) 14.00mm long x 2.28mm diameter (0.551 "x 0.090")

Maximum switch voltage: 200VDC

Function and Features: The ultra small normally open switch with a glass shell has long, flexible, and easy to arrange leads. The maximum switching voltage and power are 200Vdc and 0.5A, respectively The available sensitivity range is 10-30 AT. The minimum high insulation resistance is 10 ¹⁰ ohms, and the low contact resistance is below 100 milliohms

Advantages: Sealed switch contacts are not affected by external environment and will not affect the external environment; The lead is soft and can be manually arranged. The closure of the contacts does not require working current, making it very suitable for switching microcontroller logic level loads

Application scope: Magnetic spring relay, security, limit switch, telecommunications, office equipment, household appliances
