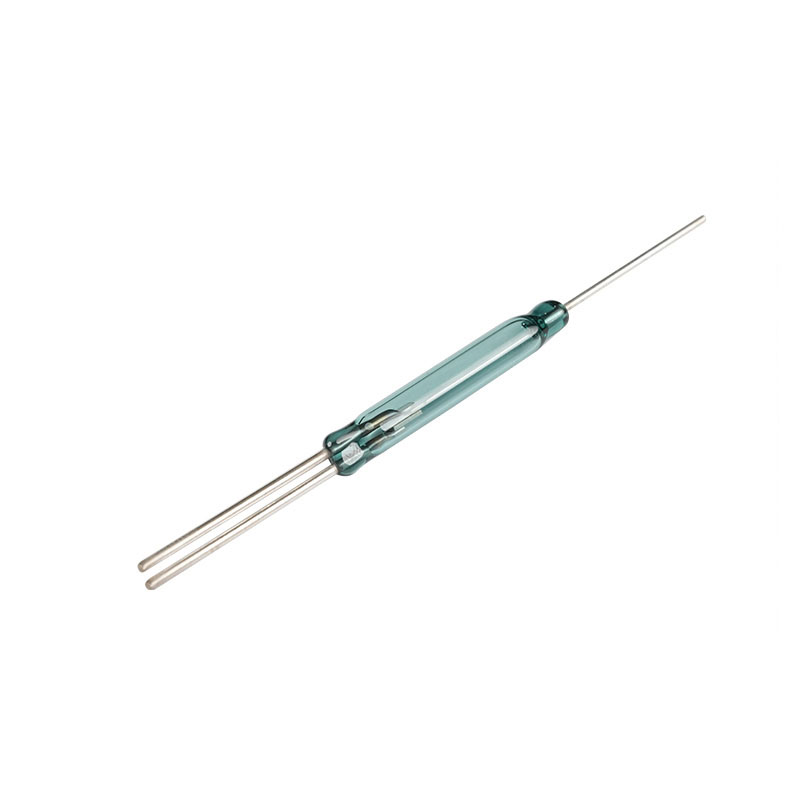

DRS-DTH

Brand: Littelfuse (HAMLIN) from the United States

Model: DRS-DTH

Features: Contact power can reach 30W

Size: Glass tube size (max) 39.70mm x diameter 5.33mm (1.562 "x 0.210")

Maximum switch voltage: 500VDC

Function and Features: Switching voltage and current are 500Vdc and 2mA or 0.5A respectively (maximum power 30W/VA). Minimum breakdown voltage: 1200Vdc DRS-DTH has at least 10 ⁹ ohms insulation resistance and contact resistance below 125 milliohms. Sensitivity range available is 50-80AT

Advantages: Sealed switch contacts are not affected by external environment and can be used as conversion or normally closed contacts. They can switch global power supply voltage and do not require operating current for contact closure

Application scope: Industrial safety, security limit switches, white goods
