HA15-2

Origin: HAMLIN, USA

Model: HA15-2

Characteristics: Minimum breakdown voltage: 400Vdc

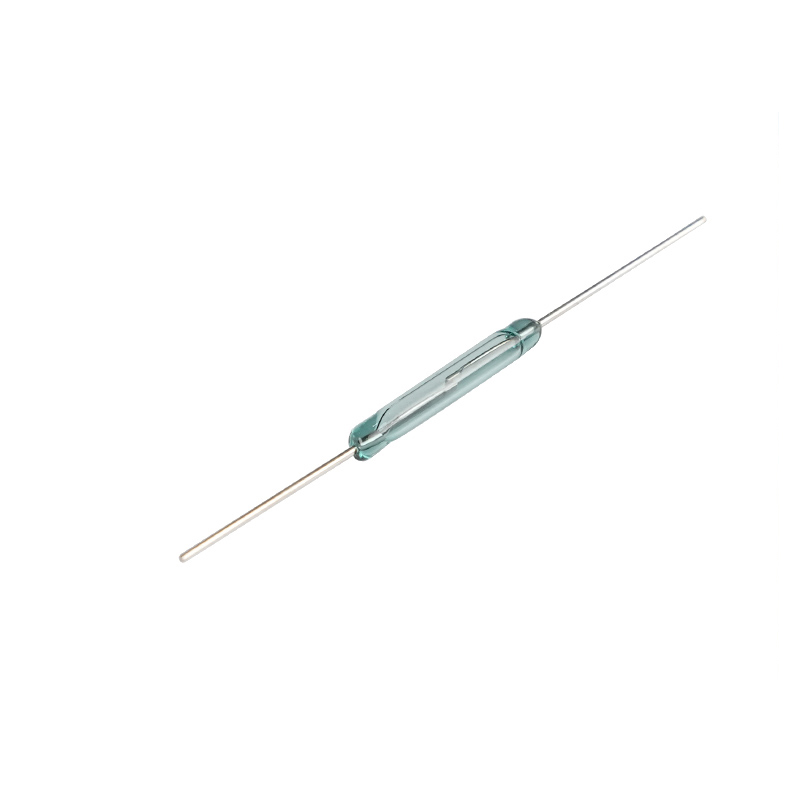

Size: Glass tube size (max15.24mm long x 2.28mm diameter (0.600 "x 0.090")

Maximum switch voltage: 265VAC

Function and Features: Ultra small normally open switch with glass casing The maximum switching voltage and power are 265Vdc and 0.5Adc, respectively (with a maximum power of 20w) The available sensitivity range is 17-33 AT. The minimum high insulation resistance is 10 ¹⁰ ohms, and the contact resistance is below 100 milliohms

Advantages: Sealed switch contacts are not affected by external environment and will not affect the external environment; It can switch global power supply voltage, and the closure of contacts does not require operating current, making it very suitable for switching microcontroller logic level loads

Application scope: Magnetic spring relay, security, limit switch, telecommunications, office equipment, household appliances
