55100

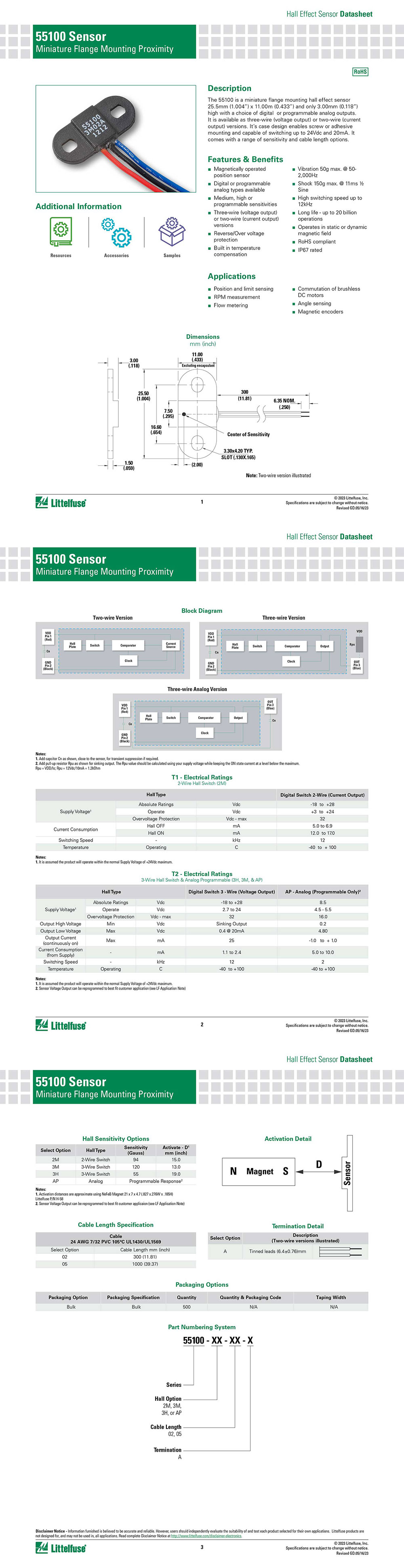

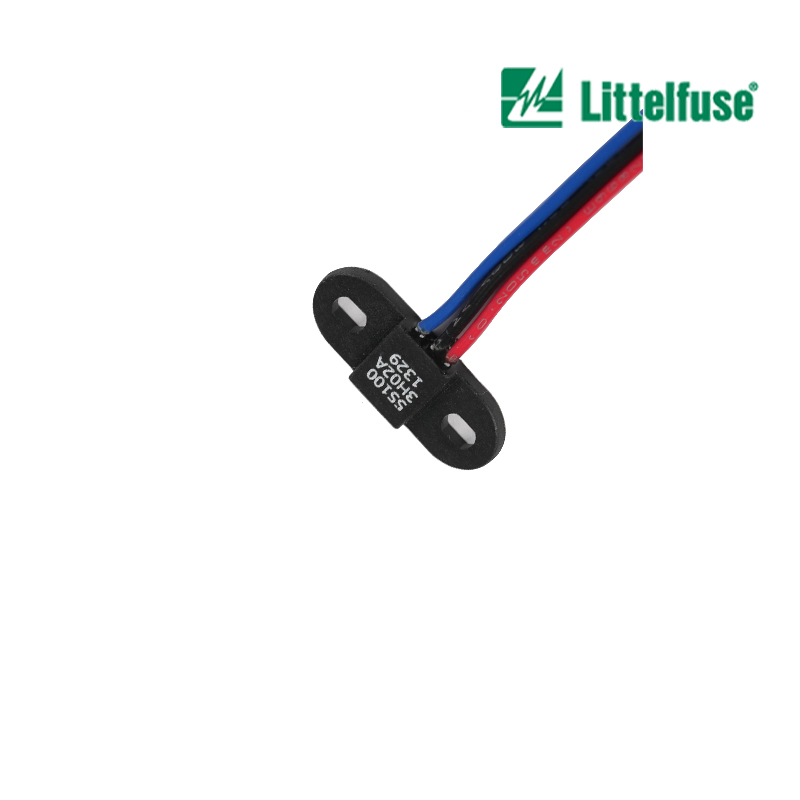

Model: 55100 Miniature Flange Mounted Hall Effect Sensor

Dimensions: 25.5mm (1.004 ") x 11.00mm (0.433"), with a height of only 3.00mm (0.118 ")

Function and Features: Electromagnetic driven position sensor, available in digital or programmable analog models, collector open circuit output, intermediate, advanced or programmable sensitivity, integrated reverse voltage/overvoltage protection, built-in temperature compensation.

Features: Switching speed up to 10kHz, long service life, up to 20 billion runs, not affected by harsh environments, can operate in static or dynamic magnetic fields, with various cable lengths and connectors to choose from.

Application scope: Position and limit sensing, RPM measurement, flow meter, brushless DC motor commutation, angle induction, magnetic encoder.
