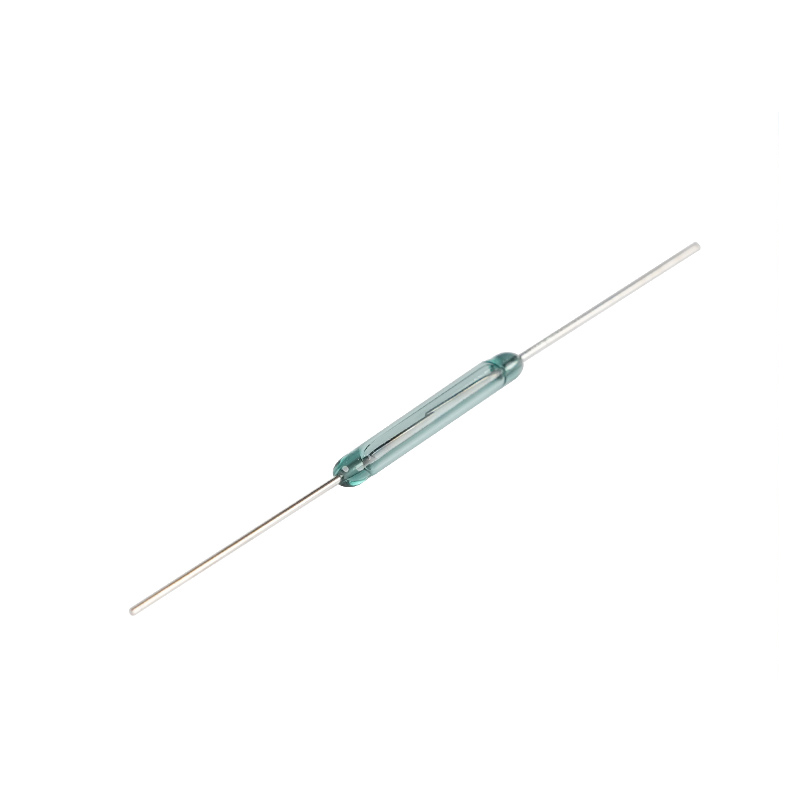

MARR-1

Brand: Littelfuse (HAMLIN) from the United States

Model: MARR-1

Features: Normally open contact, contact power can reach 10W

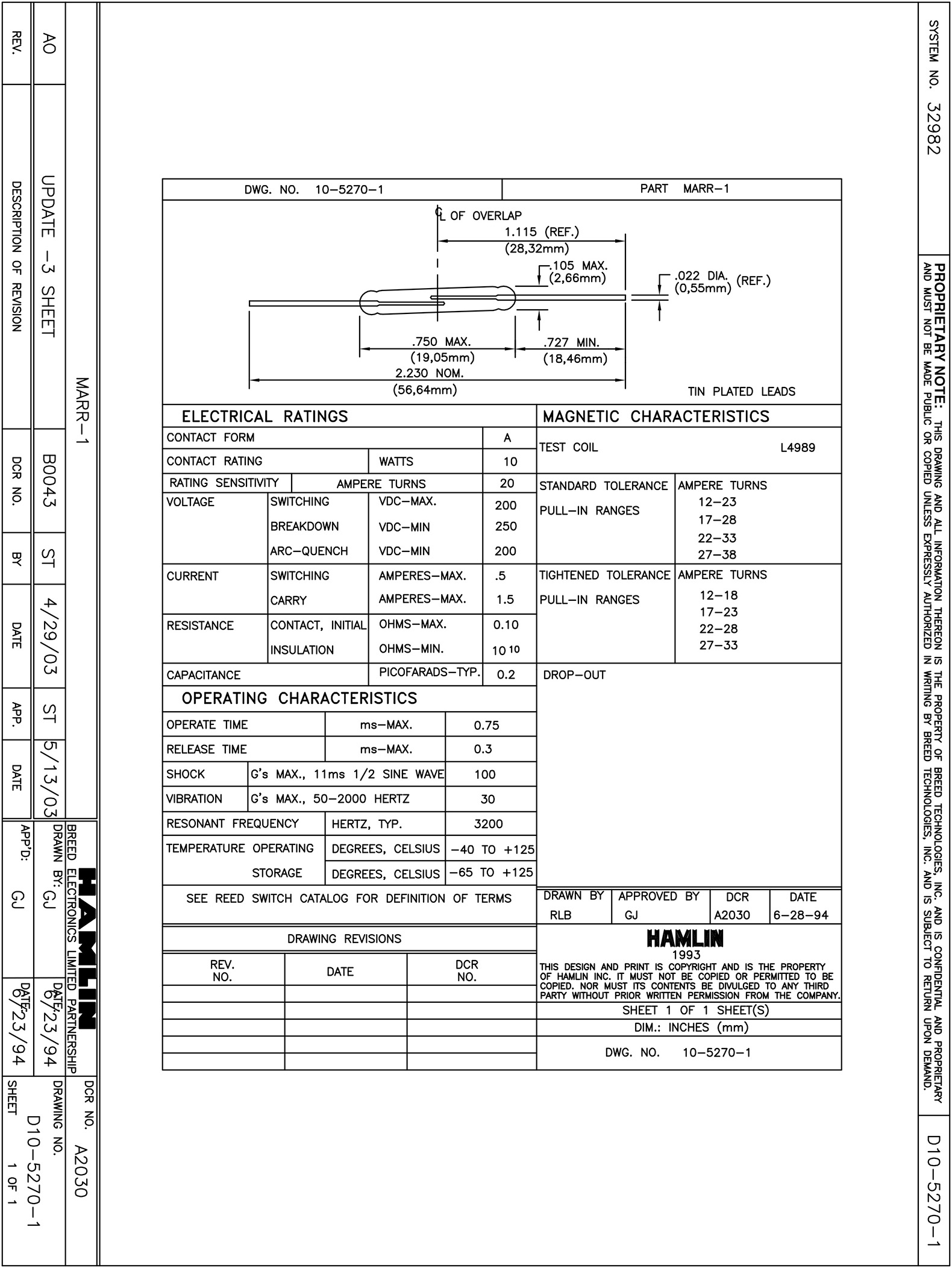

Size: Glass tube size (max) 19.05mm long x 2.66mm diameter (0.0750 "x 0.105")

Maximum switch voltage: 200VDC

Function and Features: The maximum switching voltage and current of the normally open switch are 200Vdc and 0.5A respectively (with a maximum power of 10W) The sensitivity range available for selection is 12-38 AT

Advantages: Sealed switch contacts are not affected by external environment and will not affect the external environment; Stable and ultra-low contact resistance; Lightweight body shape; The power required for contact action is zero; Durable and long-lasting

Application scope: Position sensors, industrial control, office equipment, household appliances
