MDCG-4

Brand: Littelfuse (HAMLIN) from the United States

Model: MDCG-4

Features: Normally open contact, contact power can reach 10W

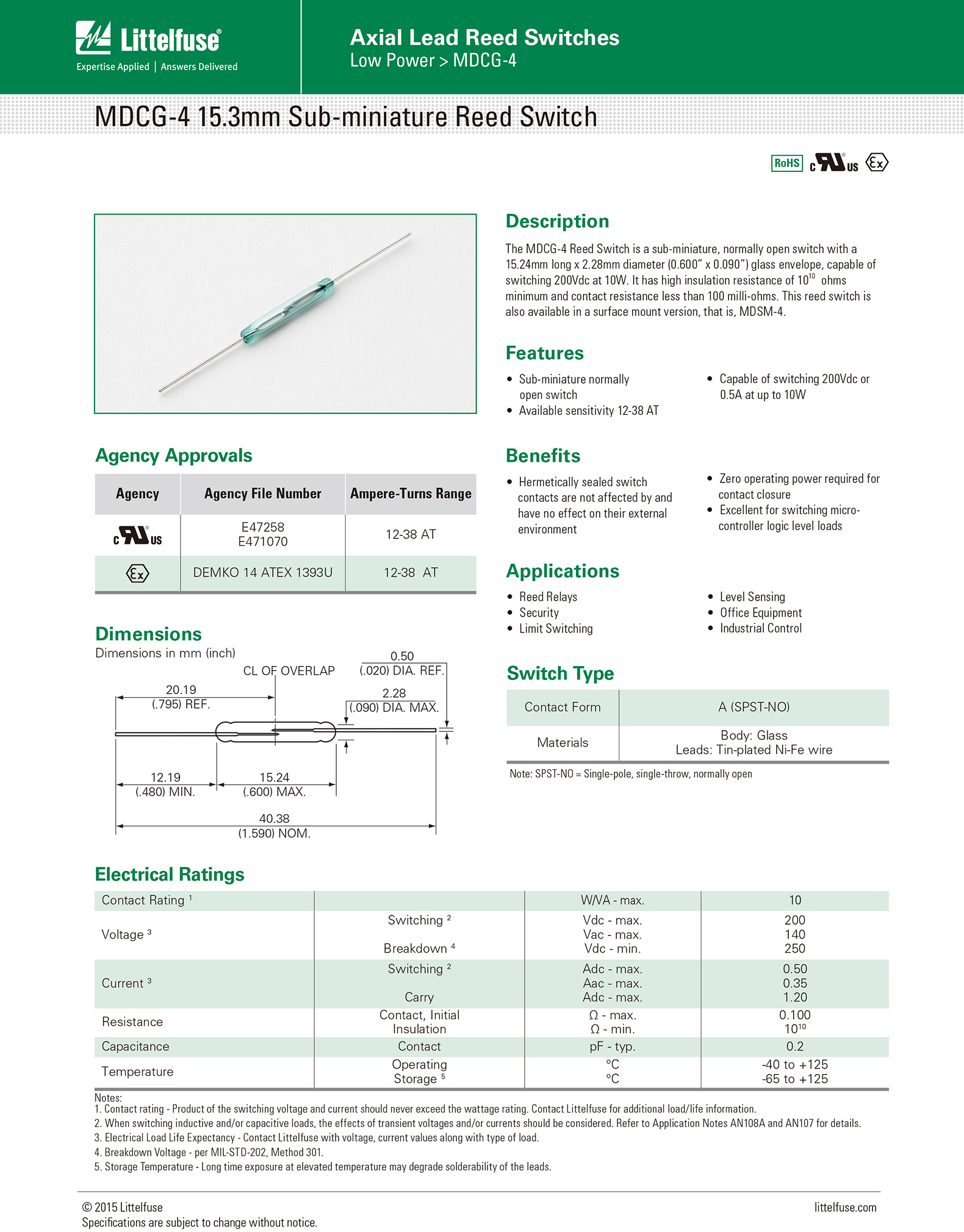

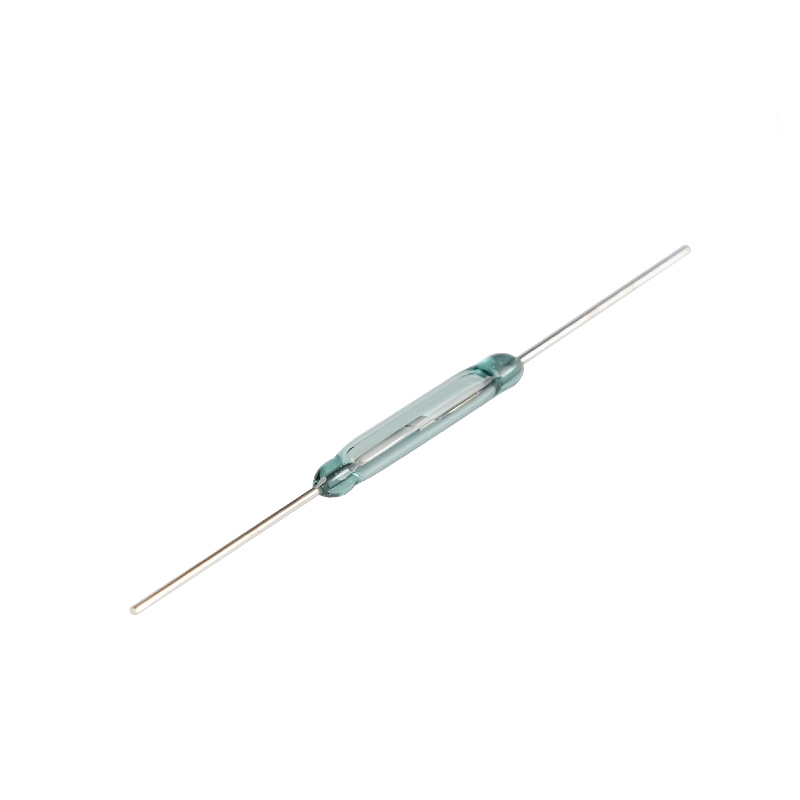

Size: Glass tube size (max) 15.24mm long x 2.28mm diameter (0.600 "x 0.090")

Maximum switch voltage: 200VDC

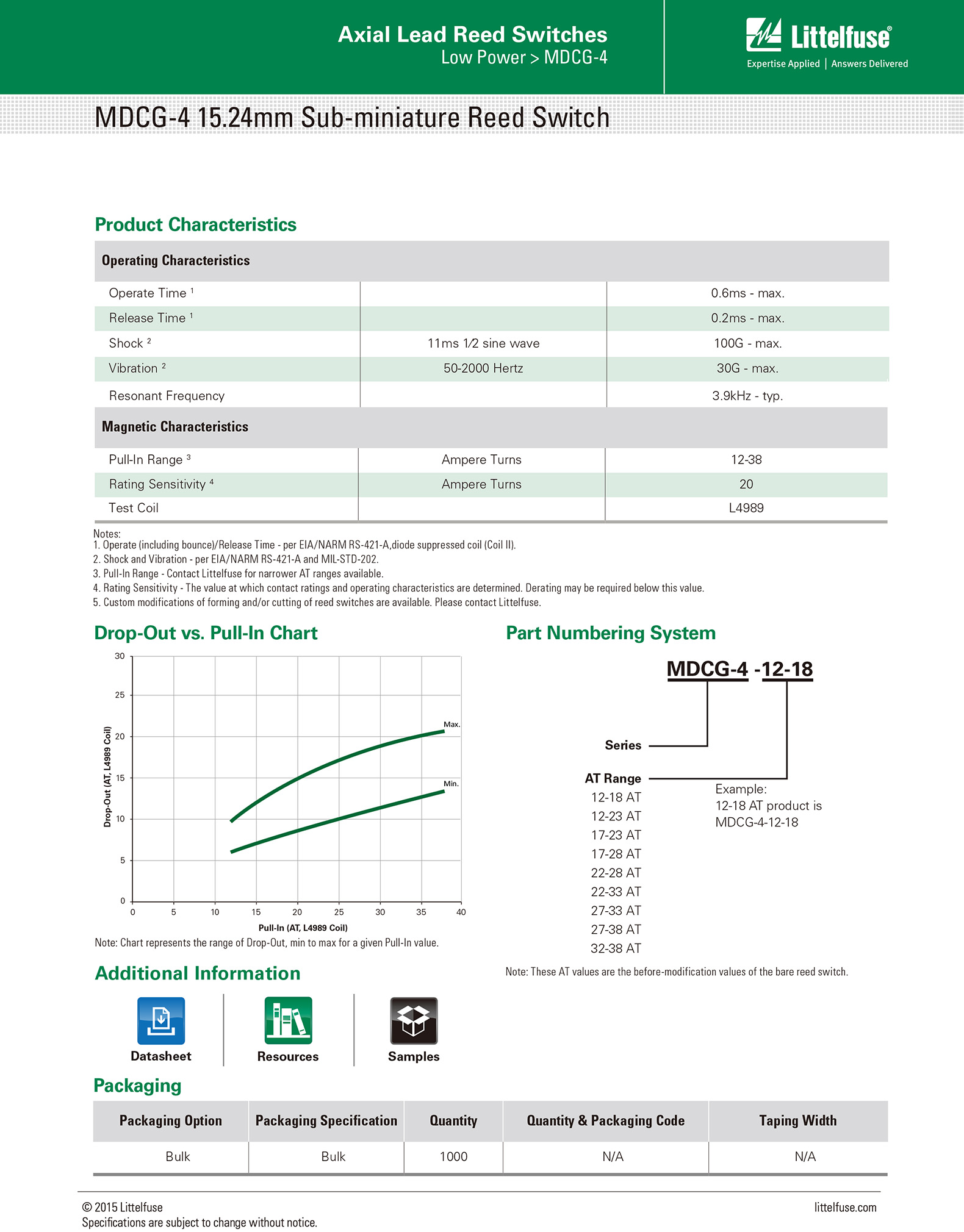

Function and Features: The maximum switching voltage and current of the normally open switch are 200Vdc and 0.5A, respectively (with a maximum power of 10W); The sensitivity range available for selection is 12-38 AT

Advantages: Sealed switch contacts are not affected by external environment and will not affect the external environment; The closure of contacts does not require working current; Very suitable for switching microcontroller logic level loads

Application scope: Magnetic spring relay, security, limit switch, telecommunications, office equipment, household appliances
