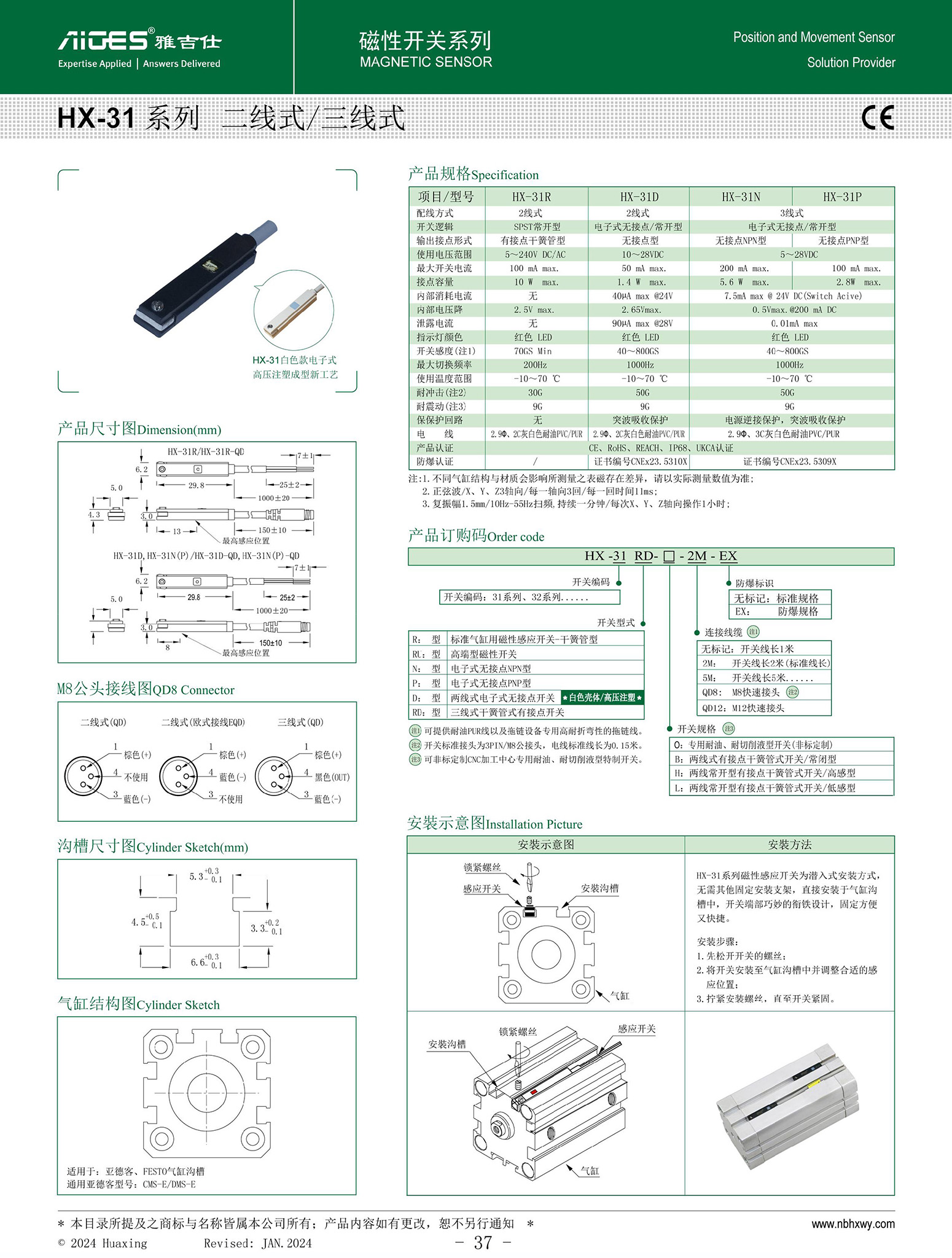

HX-31

Product brand: AIGES

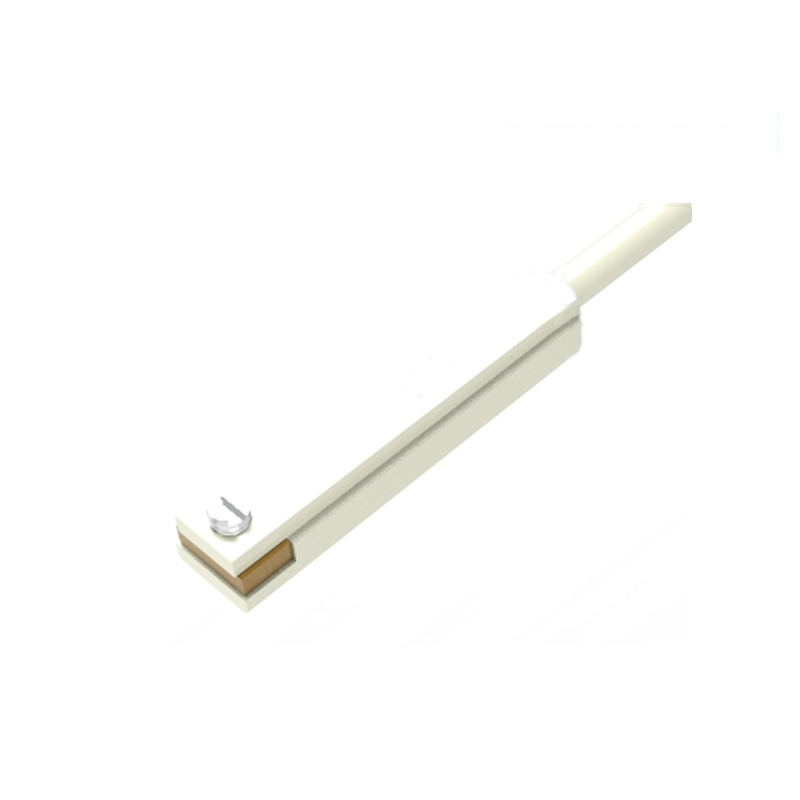

Product Name: HX-31 New Low Voltage Glued Magnetic Induction Switch Series - Reed Switch/Electronic Advantage Products

Product model: HX-31R HX-31D、HX-31P、HX-31N

Product types: HX-31R magnetic reed switch type, HX-31D two-wire electronic type, HX-31PNP three wire electronic crystal type, HX-31NPN three wire electronic crystal type,

Product advantages: The product structure is simple and compact, using high brightness LED indicator lights, earthquake resistant design, suitable for occasions with large vibrations, and can be installed in two fixed ways: groove type concealed installation and binding, making installation simple and beautiful.

Process features: Low pressure injection molding and packaging process, one-time molding of the mold.

Application scope: Suitable for FESTO Festo groove cylinders, such as SME-8-K-LED-230, SME-8-NS-K-LED-24, SME-8-PS-K-LED-24 and other types of induction switches.
