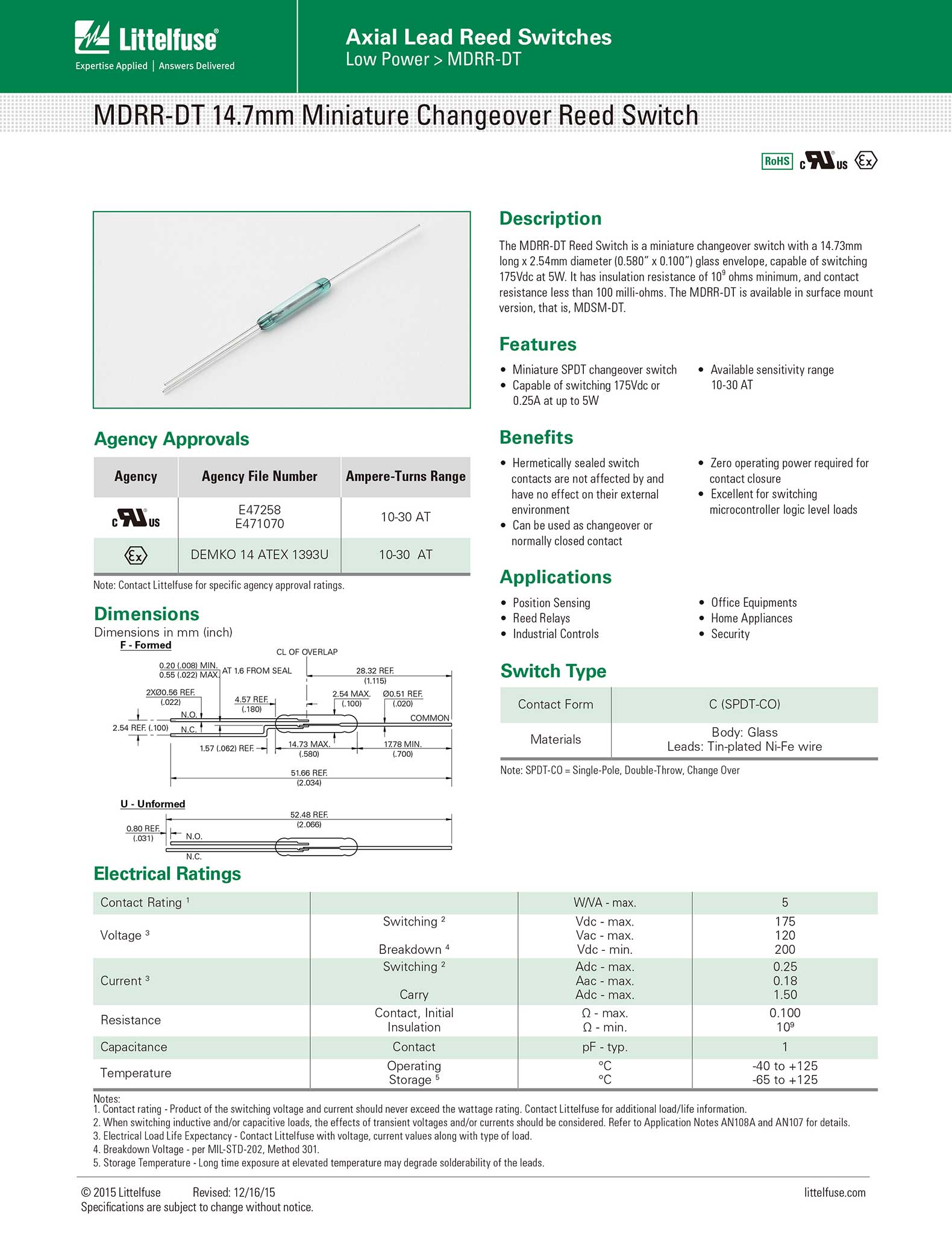

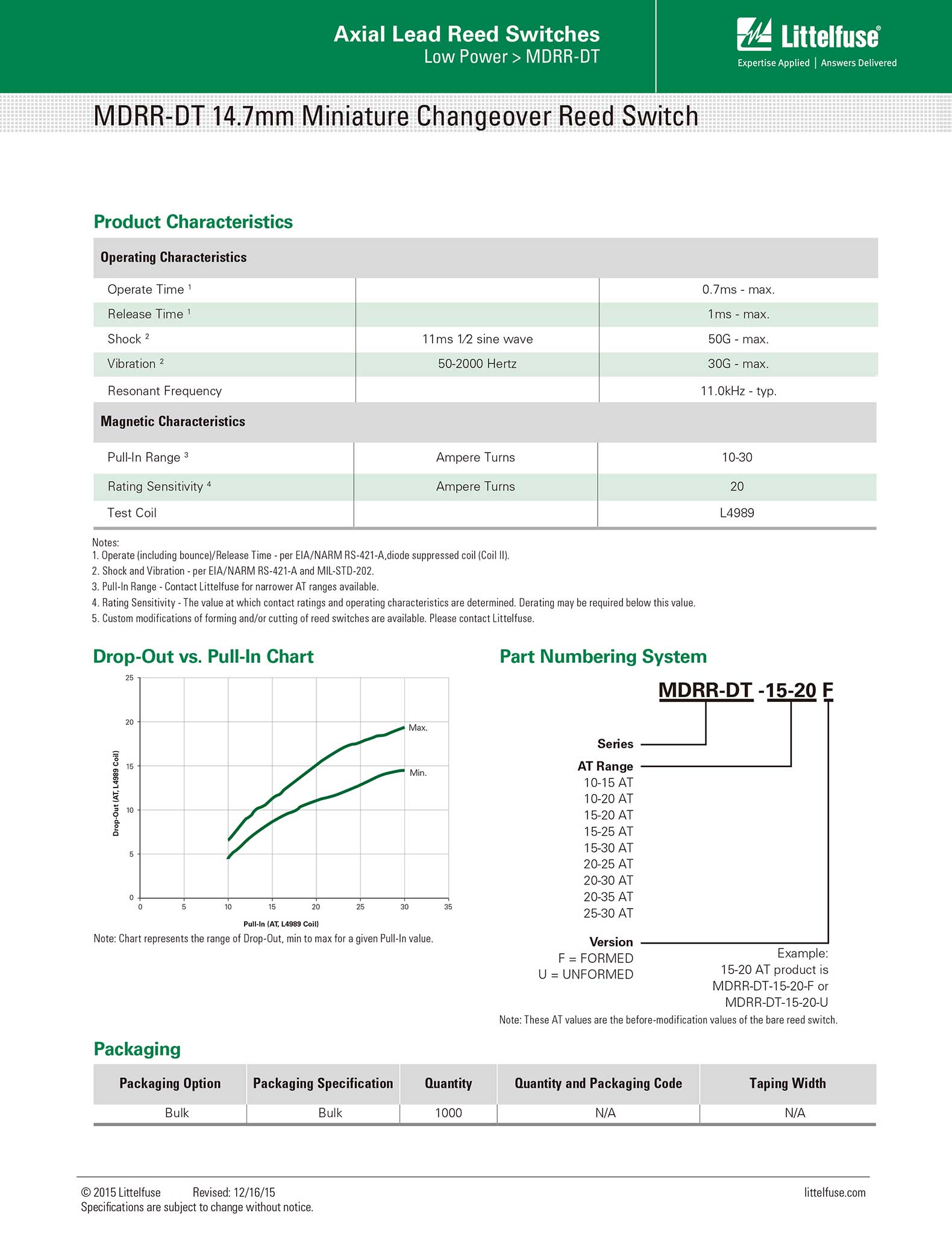

MDRR-DT

Brand: Littelfuse (HAMLIN) from the United States

Model: MDRR-DT

Switching voltage: 175VDC

Features: Conversion switch, contact power up to 5W

Size: Glass tube size (max) 14.73mm long x 2.54mm diameter (0.580 "x 0.100")

Switching voltage: 175VDC

Function and Features: A miniature SPDT conversion switch with a maximum switching voltage of 175Vdc and current of 0.25A (maximum power of 5W); The available sensitivity range is 15-30 AT

Advantages: Sealed switch contacts are not affected by external environment and will not affect the external environment; Can be used as a conversion or normally closed contact; The closure of contacts does not require working current; Very suitable for switching microcontroller logic level loads

Application scope: Position sensing, industrial control, office equipment, household appliances
