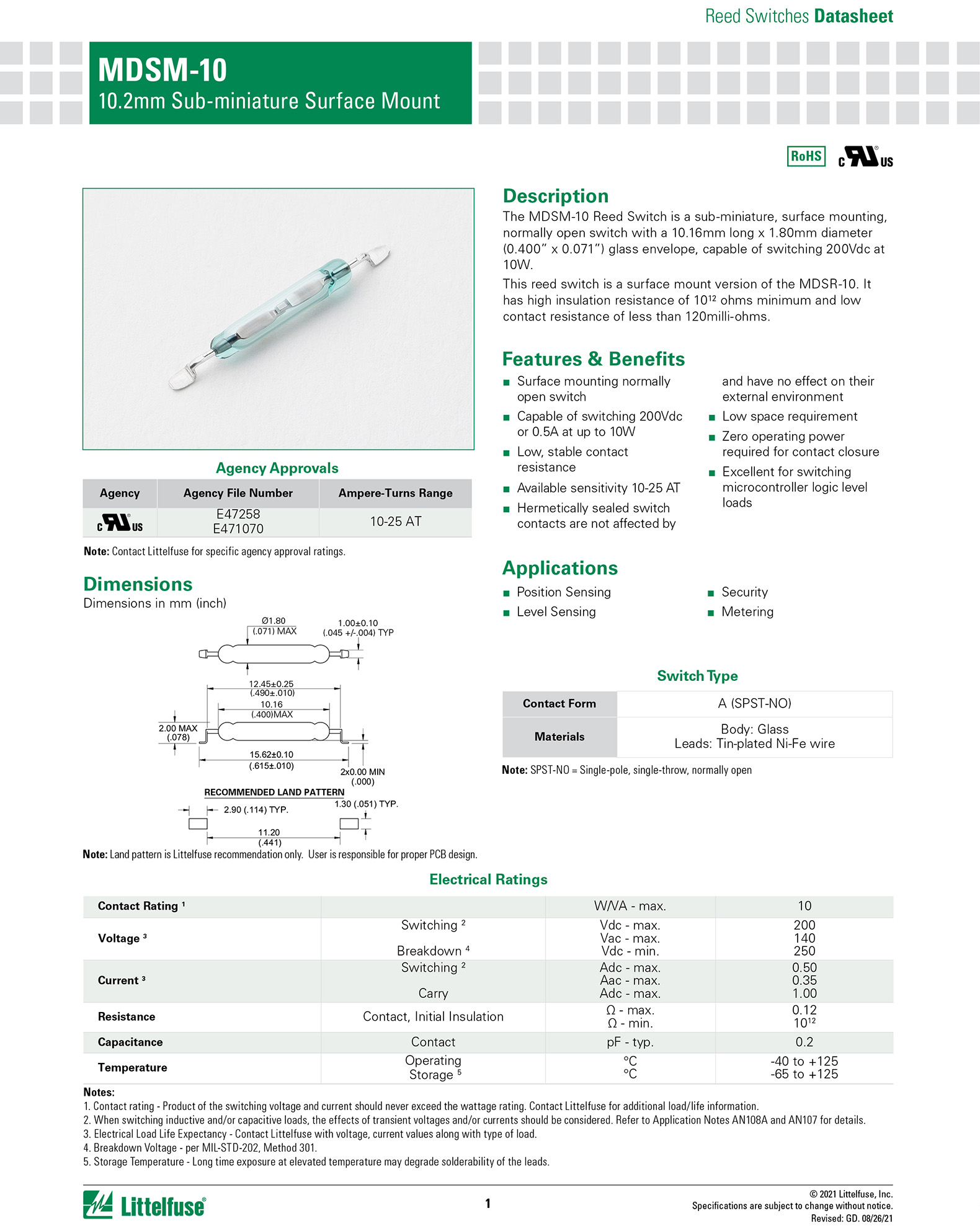

MDSM-10

Brand: Littelfuse (HAMLIN) from the United States

Model: MDSM-10

Size: Glass casing measuring 10.16mm in length and 1.8mm in diameter (0.400 "x 0.071")

Maximum switch voltage: 200VDC

Function and Features: Ultra small normally open switch, with maximum switching voltage and current of 200Vdc and 0.5A respectively (maximum power of 10W). The available sensitivity range is 10-25 AT with a high insulation resistance of at least 10 ¹⁰ ohms and a contact resistance of less than 120 milliohms.

Advantages: Sealed switch contacts are not affected by external environment and will not affect the external environment;, The closure of contacts does not require operating current, making it very suitable for switching microcontroller logic level loads

Application scope: Position sensing, liquid level sensing, security, metering, household appliances
